3-4 Week Lead Time

• Engine: S/B
• Shroud YES/NO: YES
• Electric Fan YES/NO: YES
• CRITICAL THICKNESS: 6.00 IN
• THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
• TRANSMISSION OIL COOLER INCLUDED: Yes
• Core Thickness: 2.75 in (Upgraded High Performance Core)

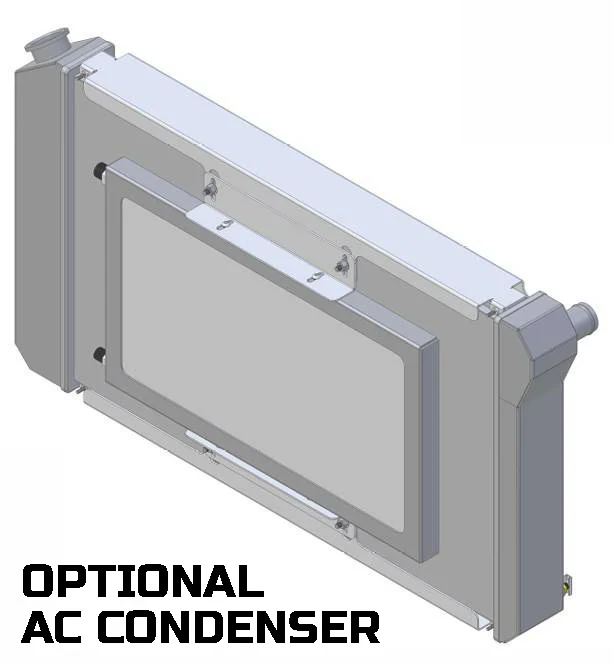

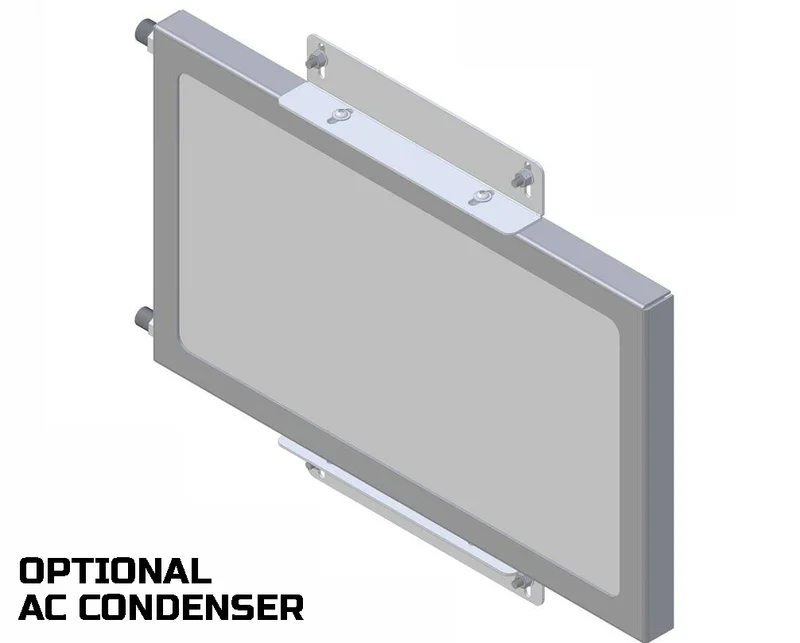

• MOUNTED AC CONDENSER: No
• INLET LOCATION: Driver Side

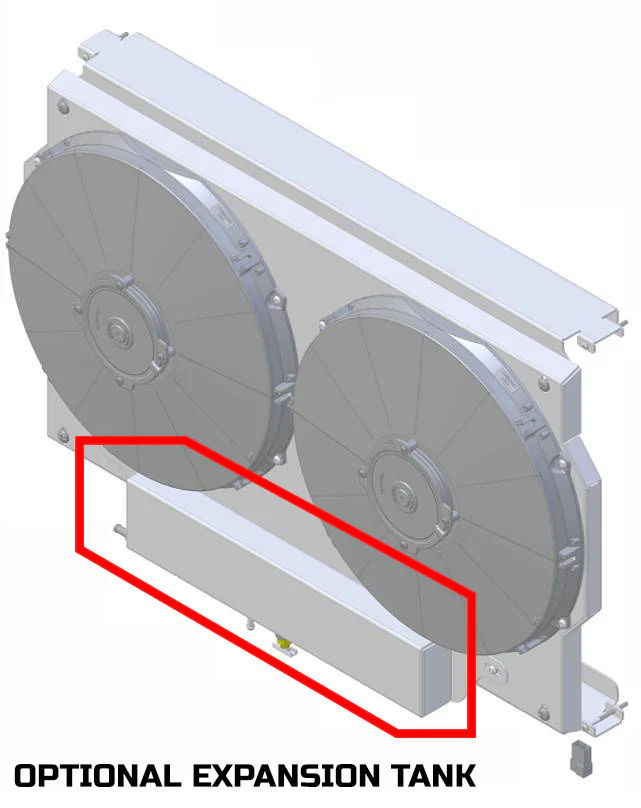

• Expansion Tank Included: No
• OUTLET LOCATION: Passenger Side
• TRANSMISSION OIL COOLER TYPE: Plate
• OUTLET DIAMETER: 1.75 IN
• TUBE INSIDE DIAMETER: 1.25 IN
• OUTLET HEADER LENGTH: 18.50 IN
• OUTLET HEADER WIDTH: 3 IN
• TANK MATERIAL: Aluminum
• INLET HEADER WIDTH: 3 IN
• TRANSMISSION OIL COOLER FITTING DIAMETER: 5/16 Inverted Flare
• TRANSMISSION OIL COOLER PLATE QUANTITY: 7
• MOUNTING TYPE: Saddle
• INLET HEADER LENGTH: 18.50 IN
• INLET DIAMETER: 1.50 IN
• ENGINE OIL COOLER INCLUDED: No
• Electric Fans: No
• DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
• CUBIC INCHES OF CORE: 1437 CuIn
• CRITICAL THICKNESS ALL: 5.00 IN
• CRITICAL THICKNESS ALL: 5.50 IN
• CRITICAL THICKNESS ALL: 6.00 IN
• CRITICAL THICKNESS ALL: 6.50 IN
• CRITICAL THICKNESS ALL: 7.50 IN

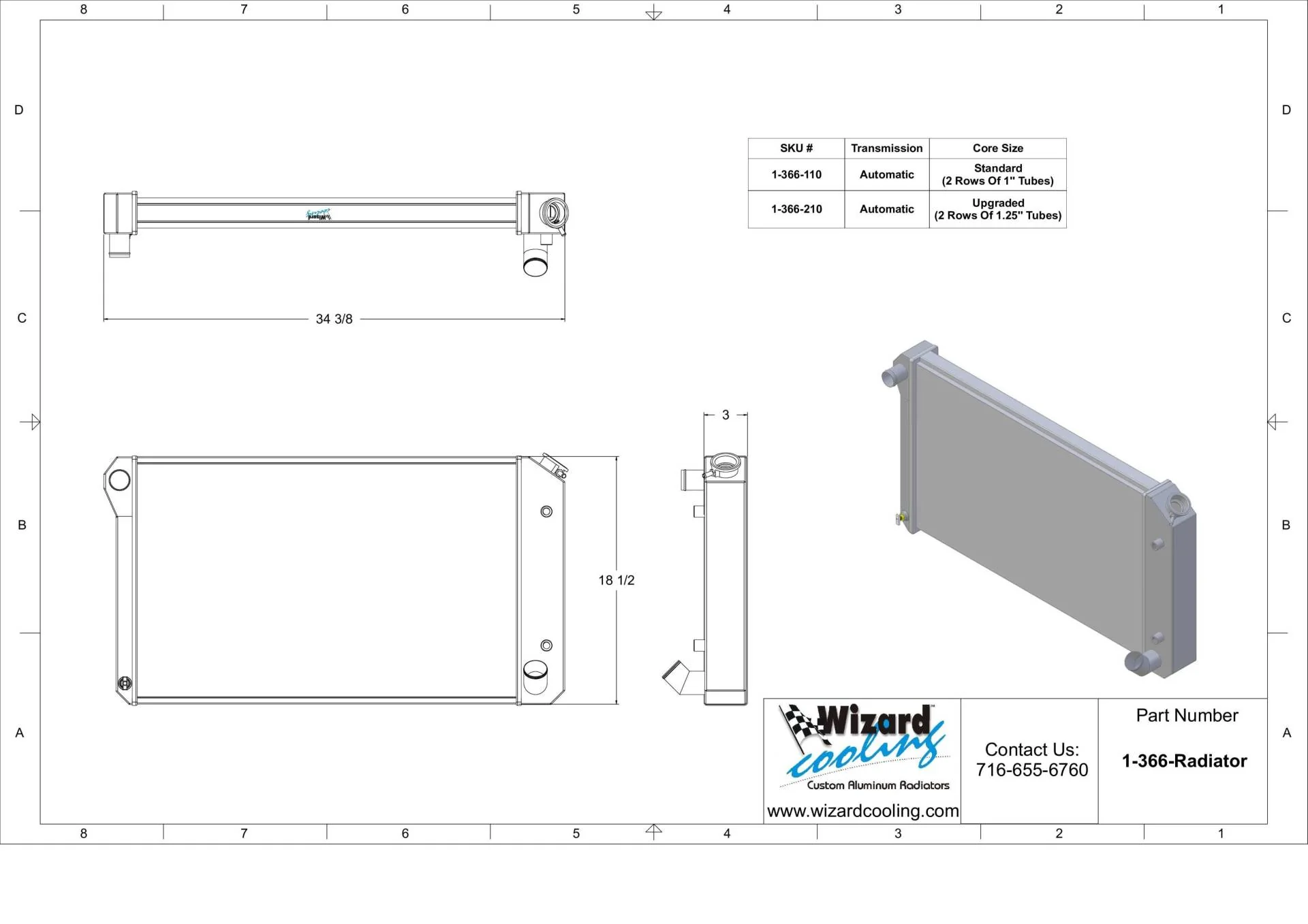

• CORE WIDTH: 28.25 IN
• CORE ROW QUANTITY: 2
• CORE MATERIAL: Aluminum
• FINISH: Aluminum
• CORE HEIGHT: 18.50 IN
• PACKAGE: Radiator Only
• Availability Remarks: Includes Transmission Cooler and upgraded core
