3-4 Week Lead Time

1978-1993 Chevrolet Trucks Aluminum Radiator (21.5" tall)

Aluminum SHROUD w/ LOW PROFILE Fans

Electrical kit NOT included, but can be added if needed.

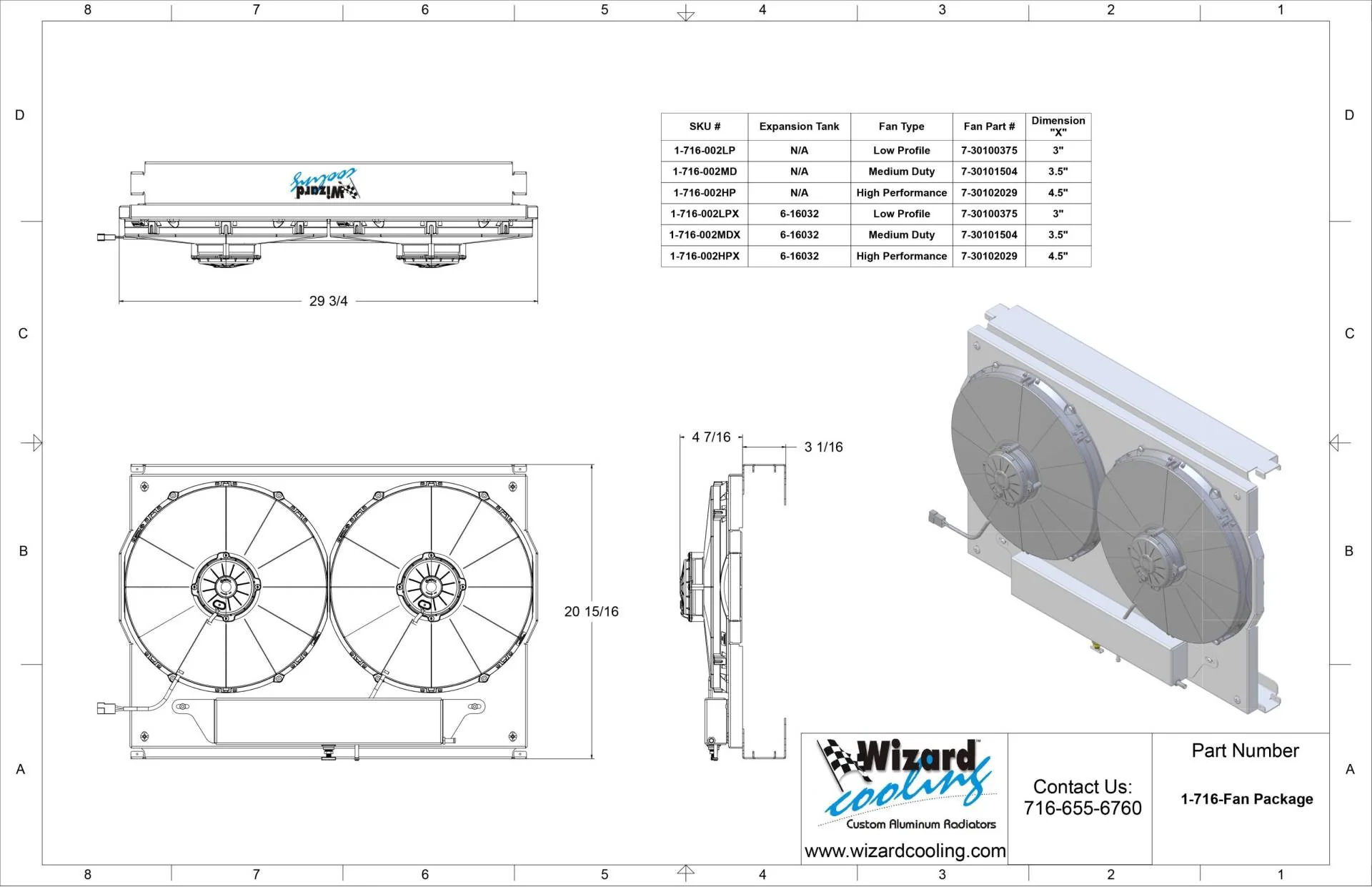

If you are considering adding this to your Wizard Cooling radiator, you will want to confirm how much room you have to work with.  This fan package is 3" thick, once added to your radiator your total thickness of your radiator and fan package will be 6" thick.

This system is designed to fit Wizard Cooling radiators. Although it may work with other radiators in the market there was no design intent for it to fit any other unit than the Wizard Cooling base part numbers starting with:

• 1-716

This kit includes:

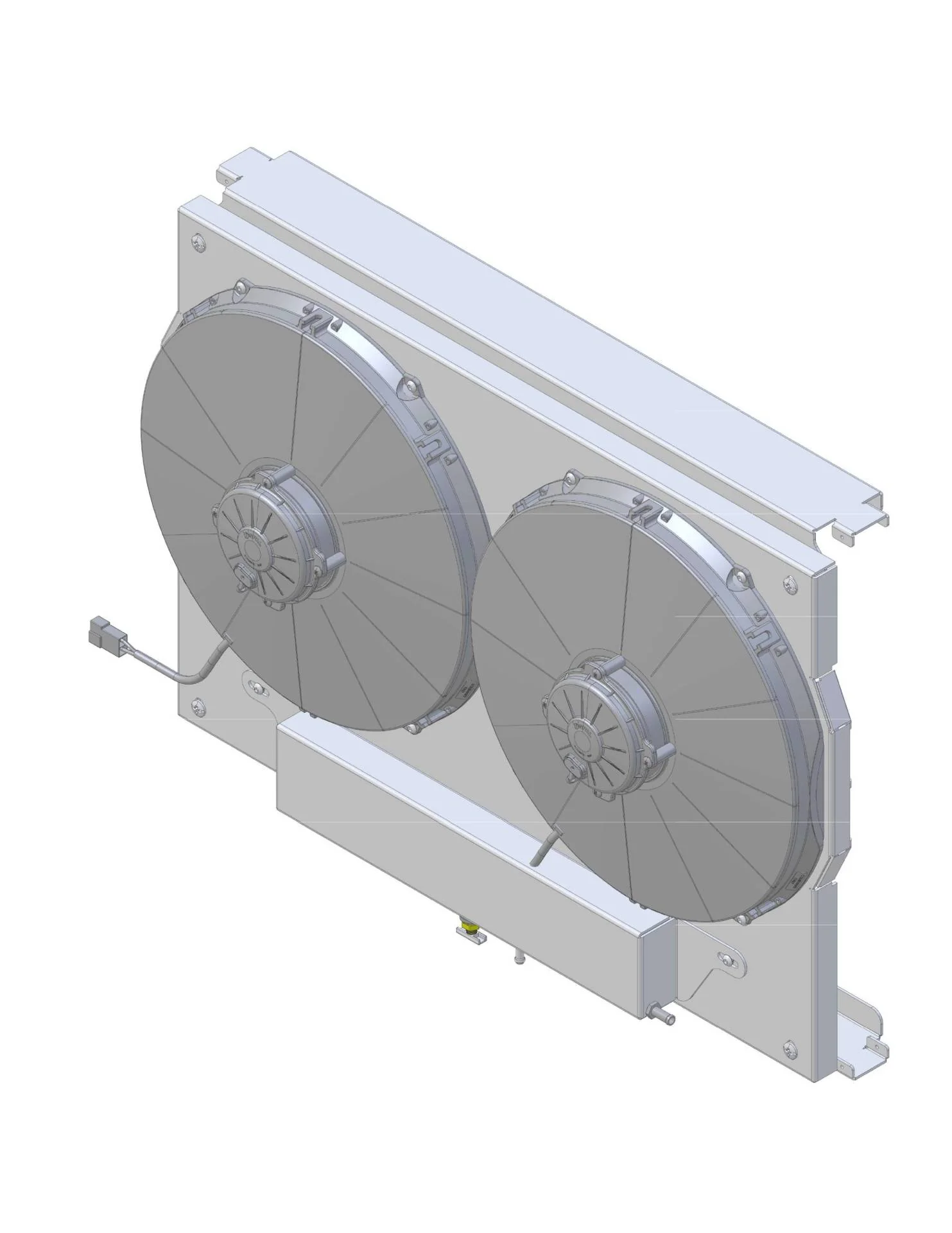

• Full Aluminum SHROUD
• Dual 14" LOW PROFILE Fans
• Top and bottom mount plates that will hug our STANDARD (2.25" thick) Core and allow you to easily mount a number of fan packages on. This bracket also features a mount point on the front side that will allow you to easily bolt on our AC condenser and or intercooler should you decide to use it.

• Engine: B/B
• Engine: S/B
• Application Nuance: 21.50“ Tall
• Shroud YES/NO: Yes
• Electric Fan YES/NO: Yes
• CRITICAL THICKNESS: 6.00 IN
• THICKNESS OF CORE: 2.25 in (Standard High Performance Core)
• TRANSMISSION OIL COOLER INCLUDED: Yes
• Core Thickness: 2.25 in (Standard High Performance Core)
• MOUNTED AC CONDENSER: No
• INLET LOCATION: Driver Side
• OUTLET LOCATION: Passenger Side

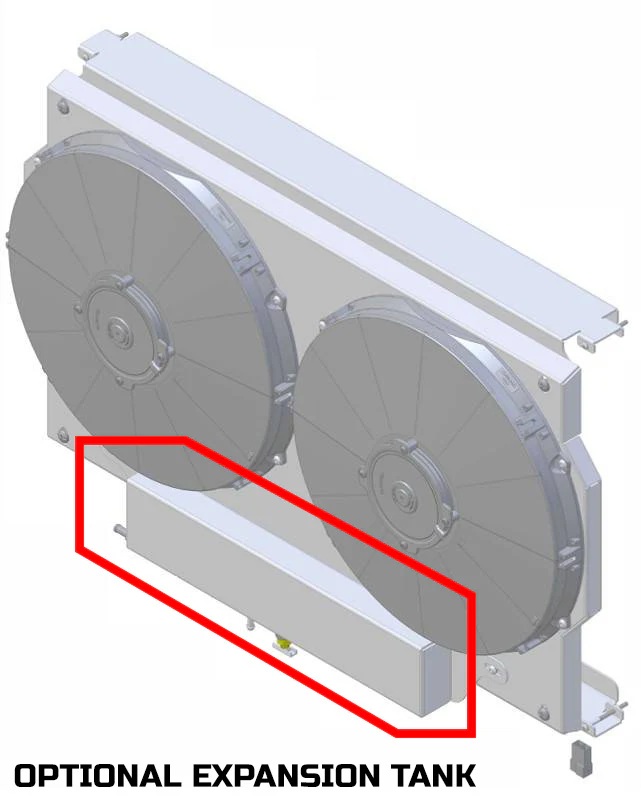

• Expansion Tank Included: No
• TRANSMISSION OIL COOLER TYPE: Plate
• TRANSMISSION OIL COOLER PLATE QUANTITY: 7
• CORE MATERIAL: Aluminum
• TRANSMISSION OIL COOLER FITTING DIAMETER: 5/16 IN Inverted Flare
• CORE ROW QUANTITY: 2
• TANK MATERIAL: Aluminum
• CORE WIDTH: 28.25 IN
• TUBE INSIDE DIAMETER: 1 IN
• CUBIC INCHES OF CORE: 1367 CuIn
• OUTLET HEADER WIDTH: 3 IN
• OUTLET HEADER LENGTH: 20.75 IN
• OUTLET DIAMETER: 1.50 IN
• MOUNTING TYPE: Saddle
• DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
• Electric Fans: Brush (STandard)
• INLET HEADER WIDTH: 3 IN
• INLET HEADER LENGTH: 20.75 IN
• INLET DIAMETER: 1.375 IN
• CORE HEIGHT: 20.75IN
• FINISH: Aluminum
• PACKAGE: Radiator / Fan Only
