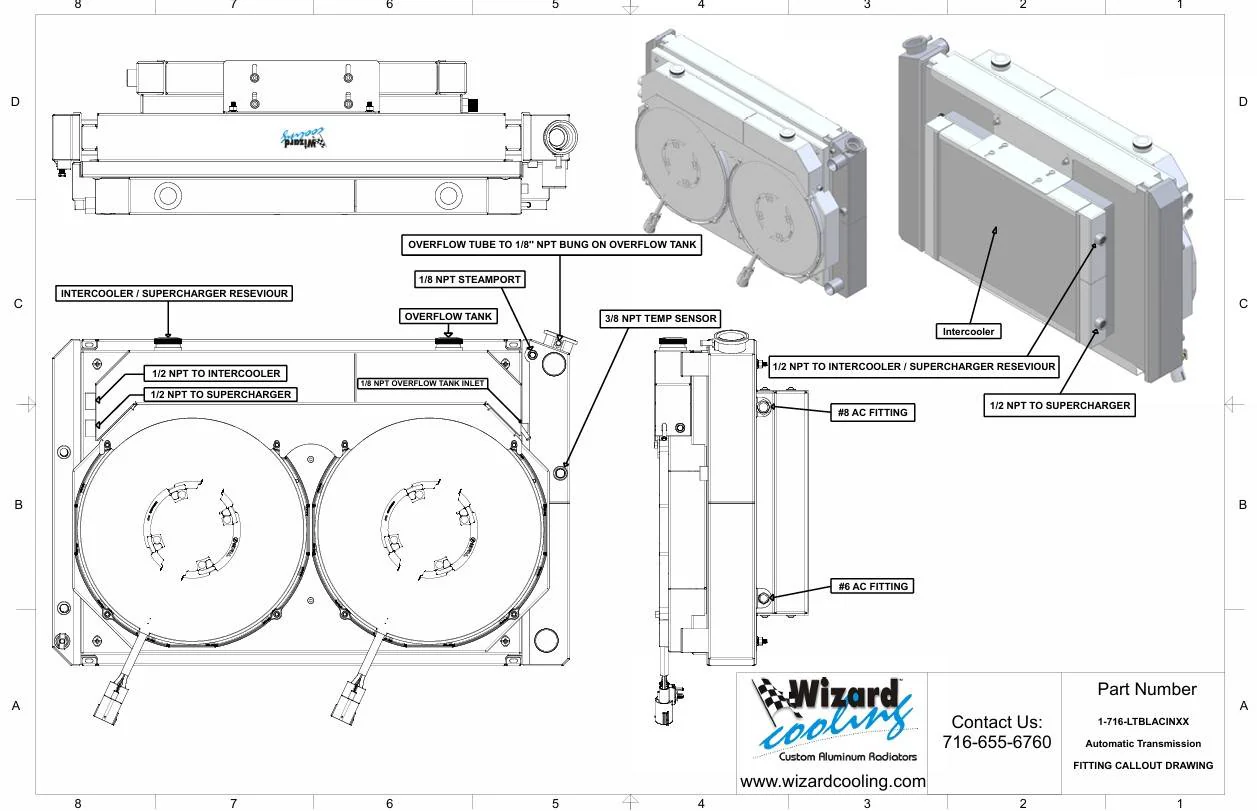

1978-1993 Chevrolet Trucks Aluminum Radiator (21.5" tall) W/ BRUSHLESS Fans & Shroud

For Applications with a SUPERCHARGED LT SWAP

Includes:

• High performance radiator
• Dual Chamber shroud
• Dual BRUSHLESS Spal Fan
• AC Condenser with #8 & #6 fittings, for aftermarket AC Systems
• Intercooler (Air over Water)
• Overflow/ recovery tank
• Intercooler reservoir

ELECTRICAL KIT NOT INCLUDED unless you add it

• Engine: LT Swap
• Engine: LT Swap (Supercharged)
• Application Nuance: 21.50“ Tall
• Shroud YES/NO: Yes
• Electric Fan YES/NO: Yes

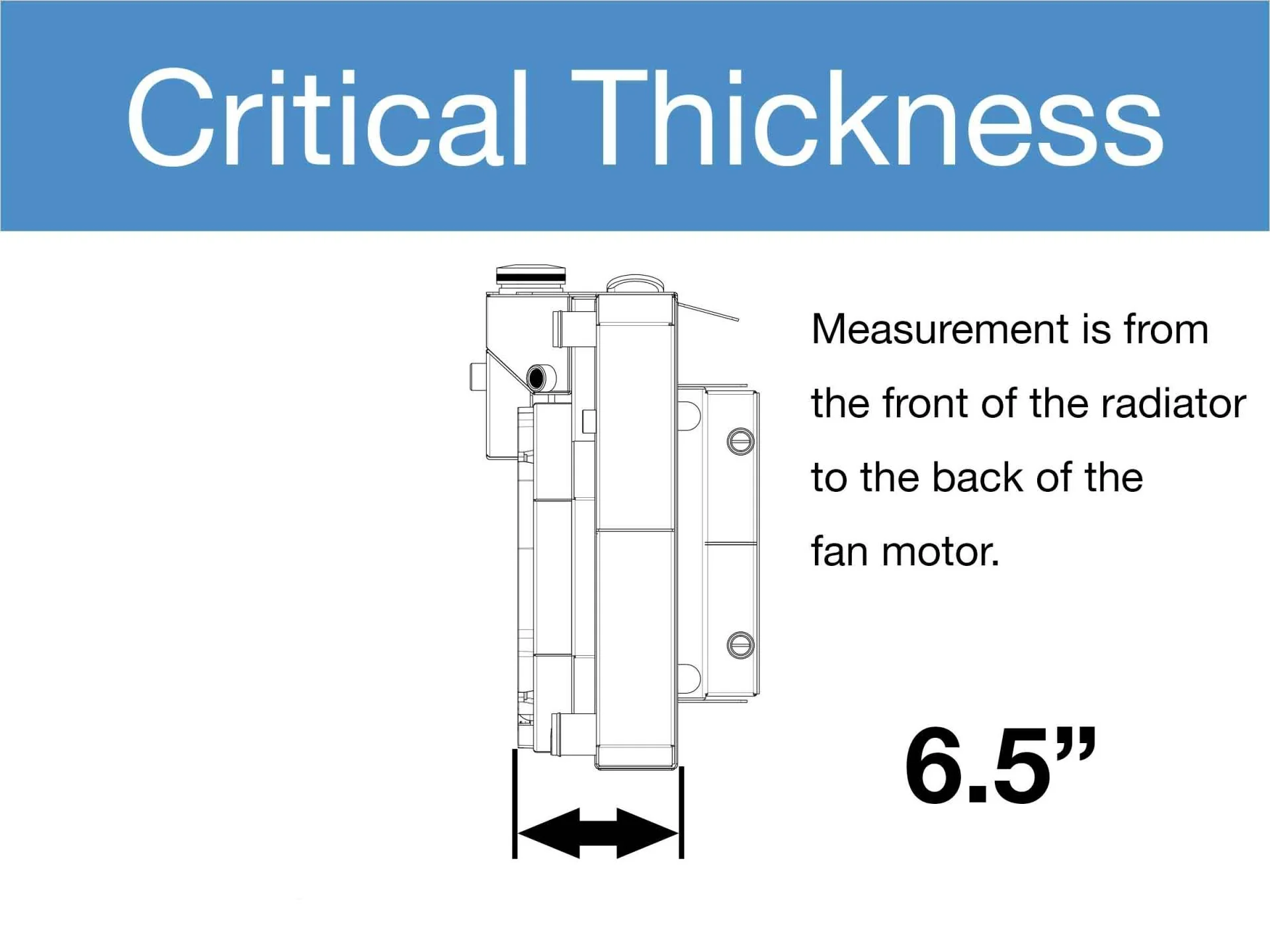

• CRITICAL THICKNESS: 6.50 IN
• CRITICAL THICKNESS: 7.50 IN
• THICKNESS OF CORE: 2.25 in (Standard High Performance Core)
• TRANSMISSION OIL COOLER INCLUDED: Yes
• Core Thickness: 2.25 in (Standard High Performance Core)
• Electric Fan Type: Brushless
• MOUNTED AC CONDENSER: Yes
• INLET LOCATION: Passenger Side
• OUTLET LOCATION: Passenger Side
• Expansion Tank Included: Yes
• FAN DIAMETER: 14 IN
• TUBE INSIDE DIAMETER: 1 IN
• TRANSMISSION OIL COOLER TYPE: Plate
• TRANSMISSION OIL COOLER PLATE QUANTITY: 5
• CORE MATERIAL: Aluminum
• TRANSMISSION OIL COOLER FITTING DIAMETER: 1/4 NPT
• TOTAL CFM (ALL FANS): 3600
• CORE ROW QUANTITY: 2
• TANK MATERIAL: Aluminum
• CORE WIDTH: 28.25 IN
• CUBIC INCHES OF CORE: 1367 CuIn
• DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
• OUTLET HEADER WIDTH: 3 IN
• OUTLET HEADER LENGTH: 20.75 IN
• OUTLET DIAMETER: 1.50 IN
• NUMBER OF ELECTRIC FANS: 2
• MOUNTING TYPE: Saddle
• Electric Fans: Yes
• ENGINE OIL COOLER INCLUDED: No
• INLET HEADER WIDTH: 3 IN
• INLET HEADER LENGTH: 20.75 IN
• INLET DIAMETER: 1.50 IN
• FAN SHROUD and RADIATOR THICKNESS: 6.50 IN
• FAN SHROUD and RADIATOR THICKNESS: 7.50 IN
• FINISH: Aluminum
• CORE HEIGHT: 20.75 IN
• SHROUD TYPE: Shroud
• PACKAGE: Radiator & Fan Package
